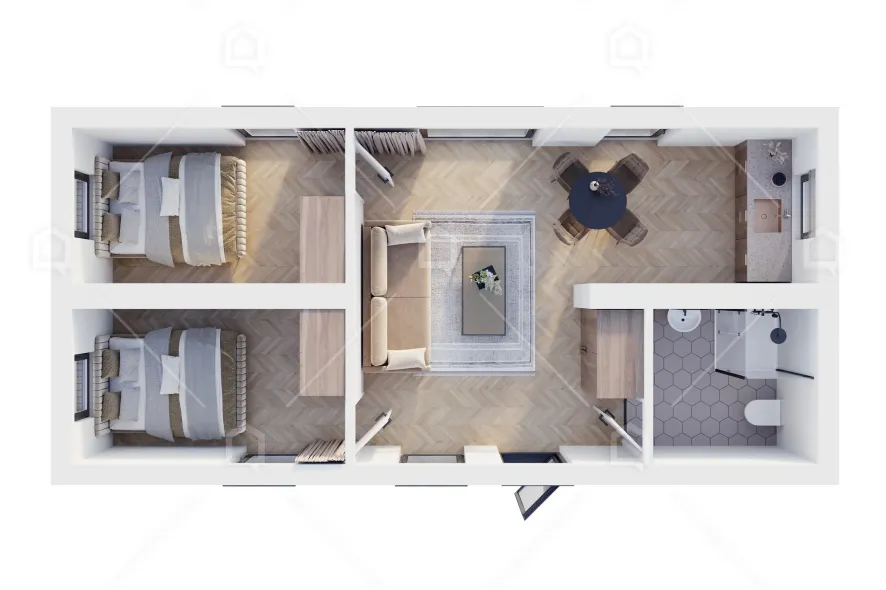

Meet ATLAS - the holiday home for your family! This is a holiday home with 40 m2 of usable space, with two bedrooms, a bathroom and a shared living-kitchen area.
Although it is small, it can be the perfect summer home for your family, where you can create the best summer memories for your children! The house has been designed with the average family in mind.

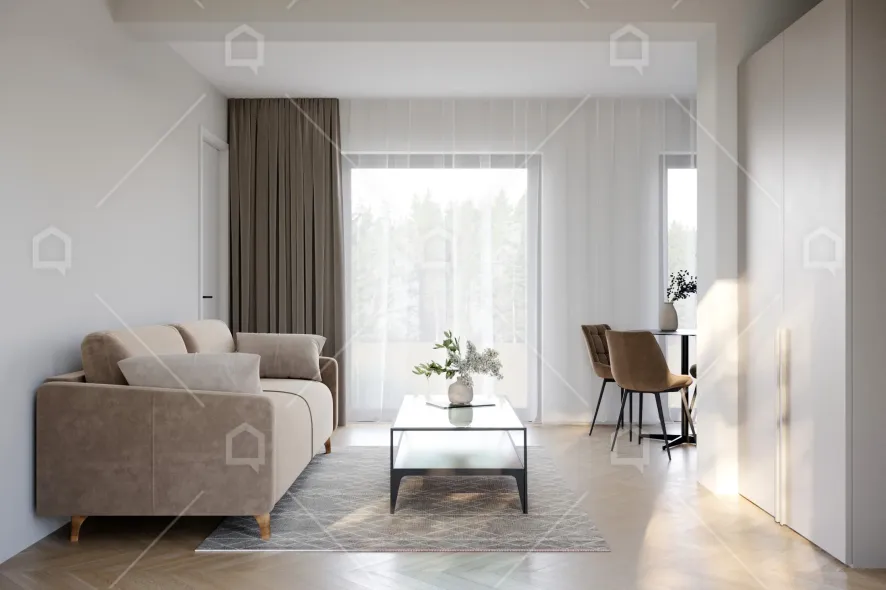

The house has a fully equipped, spacious bathroom and a fitted kitchen, which will not only be bright thanks to the two fitted windows, but also cosy because the living room and your whole family will be right there. The house is equipped with a heat recovery system and an air conditioner for heating or cooling in summer.
This small house is ideal for a garden community, your own country plot or as a holiday home for rent.

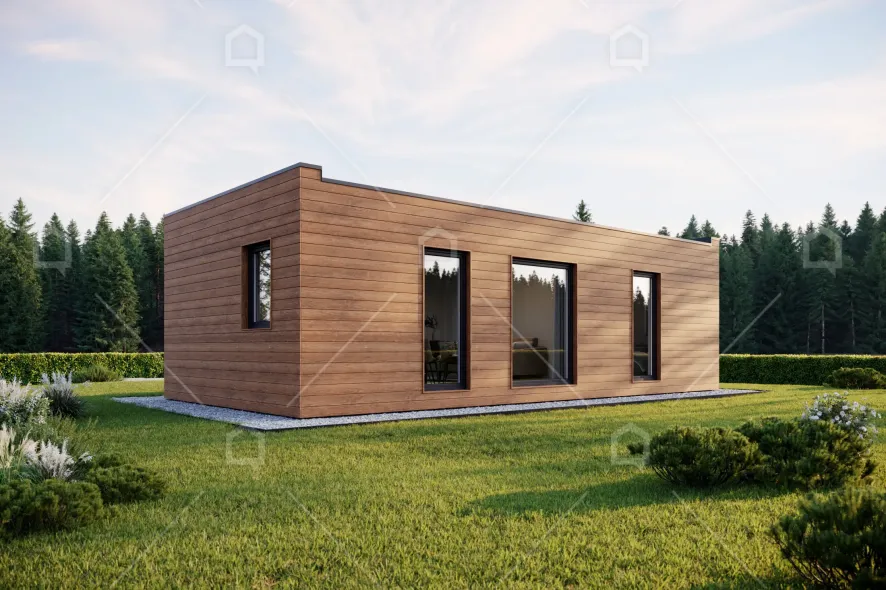

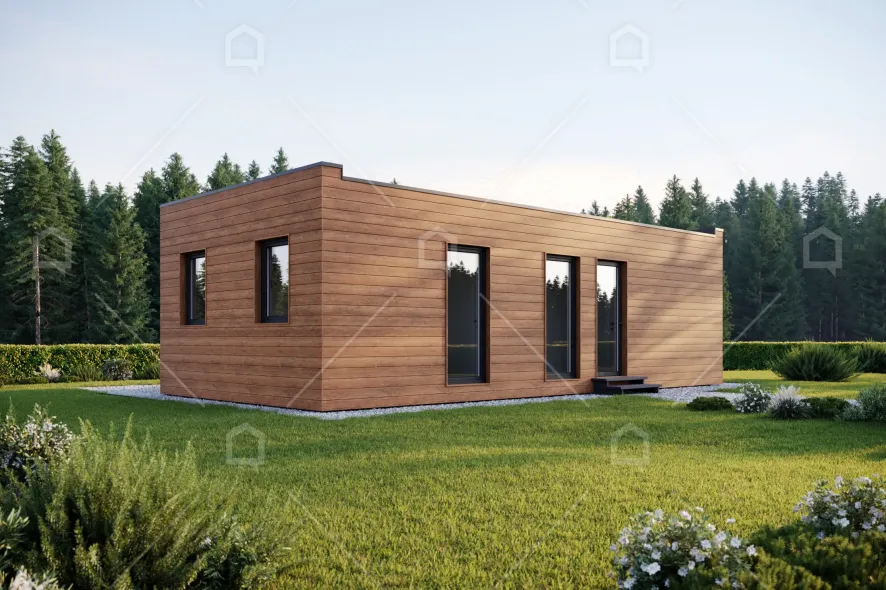

The exterior of the ATLAS is clad in clapboard and the flat roof is covered with bitumen. The house has a standard rectangular shape that can be easily adapted to any plot. You can buy the standard layout ATLAS today, or if you want to make adjustments to your project, please get in touch and we can discuss your wishes together.
A house is made up of several individual modules that are manufactured and assembled into a whole house in our factory. The modular house arrives on the customer's plot with interior and exterior finishes, a kitchen and a sanitary area.
- Robust, high quality and airtight construction (we use Siga sealing tapes with unlimited warranty).
- We use the highest quality C24 wood.
- Very good thermal insulation properties.
- Excellent sound insulation.
- Cost-effective product with low energy consumption.
- Easy to achieve the highest energy performance energy efficiency class.
- Short construction times.
- The house is assembled in the factory, the process is not weather dependent.
- A tidy construction site as the house is assembled in the factory and delivered to the site.
- Sustainable – when building a modular home, less material waste is produced than during a standard construction, meaning that it’s more friendly for the environment and your pocket (less material waste = less materials needed + quicker clean up).
- Quality – modular homes are factory-controlled, meaning that the whole construction is highly vetted before being installed. This pays off in high quality that you can be sure of.
- Safer construction – less disturbance and safer construction are what define modular homes – building a house like that can even help you stay on good terms with your neighbors.
| ROOF COVERING | |
| Structural wooden panel | 285 mm |
| Roof specification | Steel roofing Retro 25/Bituminous coating |
| Rocwool layer | 195 mm |
| MDP panels | 12 mm |
| Rainwater guttering system | Metal |
| EXTERIOR WALLS | |
| Facade finishes | Oiled or painted cladding boards |
| Structural wooden panel | 286 mm (vertical cladding boards) |
| 258 mm (horiontal cladding boards) | |
| Wall specification | Timber frame |
| Rocwool layer | 145 mm |
| Ventilation layers | Yes |
| INTERIOR | |
| Partitions | 70 mm |
| Internal partition specification | MDF board |
| Timber frame | |
| Insulation | |
| MDF board | |
| Wall finishes (living area) | Oiled cladding boards |
| MDP panels. TG-2 with click joint, connects without gaps. The thickness is 12 mm. | |
| Floor covering (living area) | Laminated floorboards. Resistance class: 33. Connection system: click. Thickness: 12mm |
| Bathroom | Stoneware tiles. Resistance: PEI4. |
| WINDOWS, DOORS | |
| Windows | PVC double-glazed |
| Doors | PVC double-glazed |
| FLOORS | |
| Structural wooden panel | 241 mm |
| Floor specification | Rodent control mesh |
| Steel frame | |
| Timber beams | |
| OSB boards | |
| Laminate flooring | |
| Rocwool layer | 195 mm |
| HOUSE EQUIPMPMENT | |
| BATHROOM | |
| Bathroom furniture | |
| Sink + faucet | |
| Mirror | |
| Shower enclosure + faucet | |
| Toilet | |
| Towel radiator | |
| Recuperator | |
| KITCHEN AREA | |
| Kitchen furniture | |
| Sink + faucet | |
| GENERAL ELEMENTS | |
| Light fittings (recessed) | |
| Air-to-air heat pump | |
| Interior door | |
| ELECTRICAL INSTALLATION INSIDE THE BUILDING | |
| Internal distribution panel | Sockets, switches, wiring layout. |
| Distribution panel | For connecting external communications |
| WATER SUPPLY/WASTER INSIDE THE BUILDING | |
| Wastewater pipelines | Wastewater distribution system |
| Sanitary appliances | Connectors for connection to external communications |
