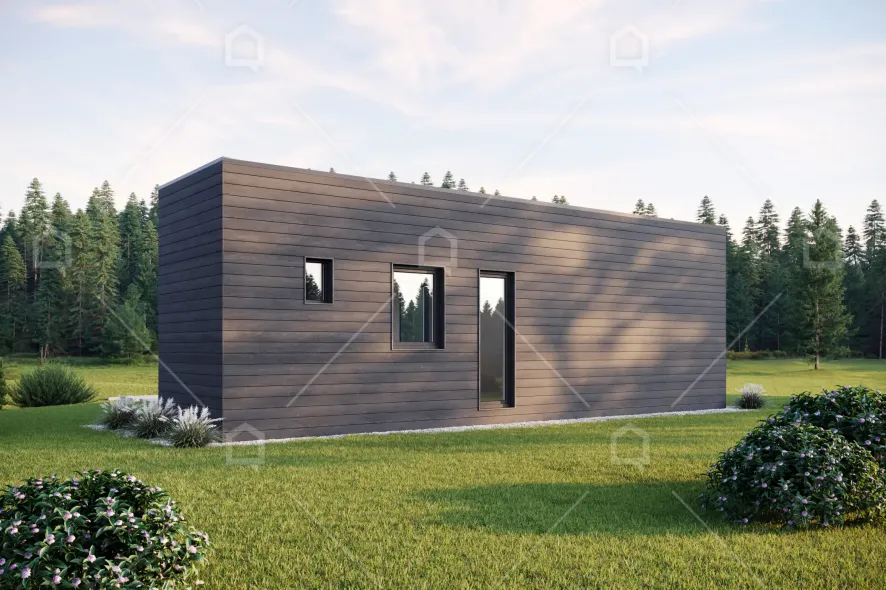

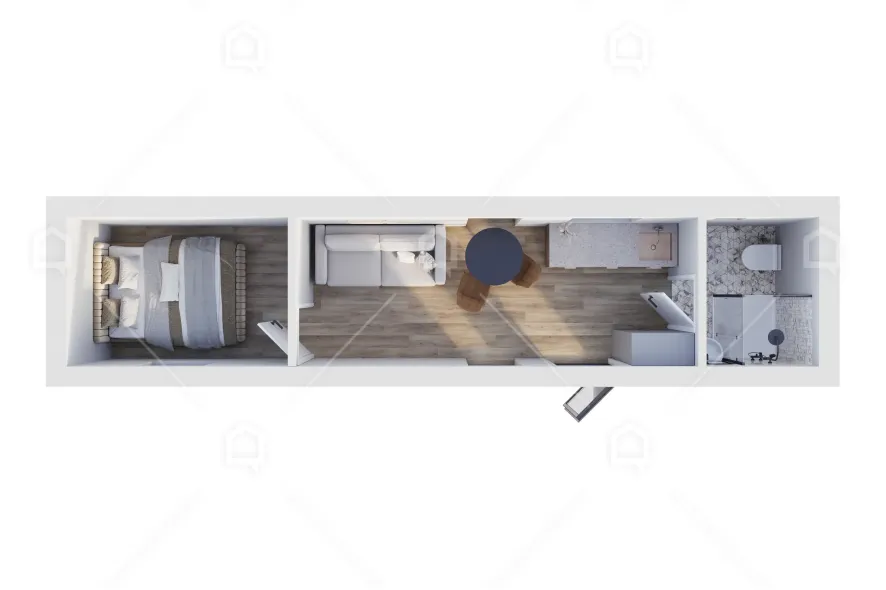

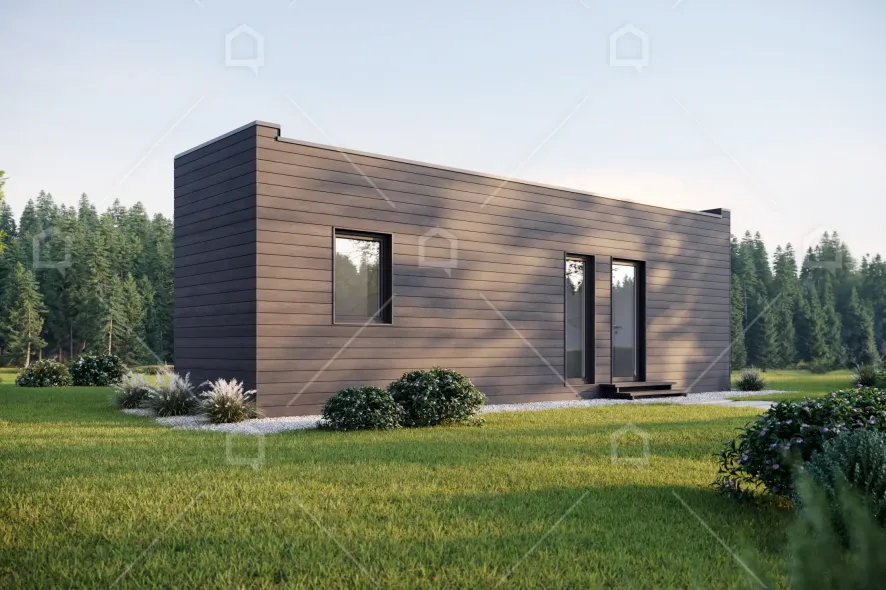

The DIA project is a 24 m² house designed for you and your family. The rectangular shape of the house (18 m² usable area) will fit perfectly into any plot and give your yard more privacy. Inside, you will find a cosy bedroom, a functional bathroom and a shared living-kitchen area, designed to be comfortable and cosy for all family members.The DIA is the ideal choice for those looking for a compact and comfortable home for a family of 1-3 persons. Thanks to its small buildable area (only 24 m²), this house can easily fit on practically any plot, thus providing additional living space. It is also ideal for a holiday home rental business, especially in recreational areas such as by the sea or lake.

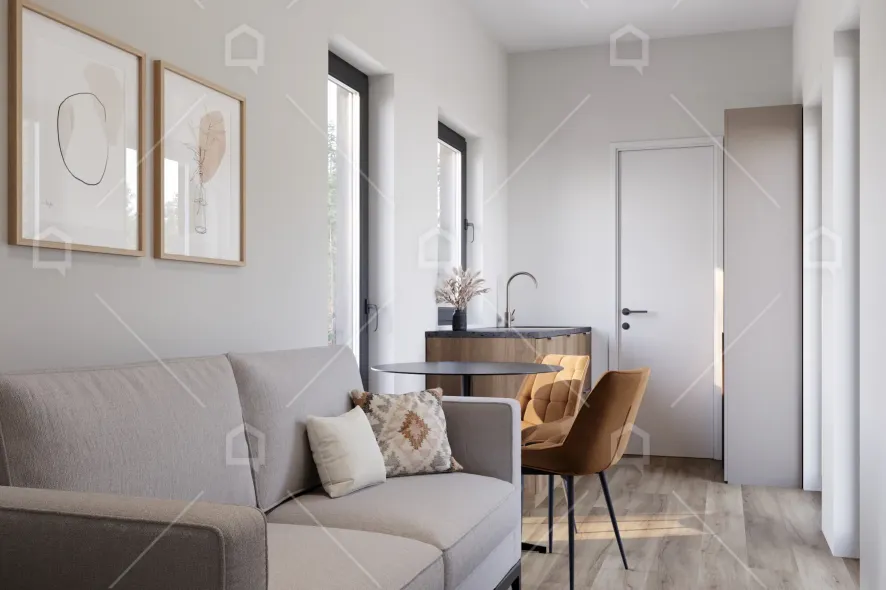

The house is furnished in such a way as to make it as comfortable as possible for everyday life. Your only headache is to choose the interior wall coverings (MDF or cladding) and the colour of the tiles - we will take care of everything else. The house is already equipped with sanitary facilities, electrical wiring, doors, light fittings and a recuperation system. The living room/kitchen area has a practical kitchenette and the bathroom has a shower and toilet.
A house is made up of several individual modules that are manufactured and assembled into a whole house in our factory. The modular house arrives on the customer's plot with interior and exterior finishes, a kitchen and a sanitary area.
- Robust, high quality and airtight construction (we use Siga sealing tapes with unlimited warranty).
- We use the highest quality C24 wood.
- Very good thermal insulation properties.
- Excellent sound insulation.
- Cost-effective product with low energy consumption.
- Easy to achieve the highest energy performance energy efficiency class.
- Short construction times.
- The house is assembled in the factory, the process is not weather dependent.
- A tidy construction site as the house is assembled in the factory and delivered to the site.
- Sustainable – when building a modular home, less material waste is produced than during a standard construction, meaning that it’s more friendly for the environment and your pocket (less material waste = less materials needed + quicker clean up).
- Quality – modular homes are factory-controlled, meaning that the whole construction is highly vetted before being installed. This pays off in high quality that you can be sure of.
- Safer construction – less disturbance and safer construction are what define modular homes – building a house like that can even help you stay on good terms with your neighbors.
| ROOF COVERING | |
| Structural wooden panel | 285 mm |
| Roof specification | Steel roofing Retro 25/Bituminous coating |
| Rocwool layer | 195 mm |
| MDP panels | 12 mm |
| Rainwater guttering system | Metal |
| EXTERIOR WALLS | |
| Facade finishes | Oiled or painted cladding boards |
| Structural wooden panel | 286 mm (vertical cladding boards) |
| 258 mm (horiontal cladding boards) | |
| Wall specification | Timber frame |
| Rocwool layer | 145 mm |
| Ventilation layers | Yes |
| INTERIOR | |
| Partitions | 70 mm |
| Internal partition specification | MDF board |
| Timber frame | |
| Insulation | |
| MDF board | |
| Wall finishes (living area) | Oiled cladding boards |
| MDP panels. TG-2 with click joint, connects without gaps. The thickness is 12 mm. | |
| Floor covering (living area) | Laminated floorboards. Resistance class: 33. Connection system: click. Thickness: 12mm |
| Bathroom | Stoneware tiles. Resistance: PEI4. |
| WINDOWS, DOORS | |
| Windows | PVC double-glazed |
| Doors | PVC double-glazed |
| FLOORS | |
| Structural wooden panel | 241 mm |
| Floor specification | Rodent control mesh |
| Steel frame | |
| Timber beams | |
| OSB boards | |
| Laminate flooring | |
| Rocwool layer | 195 mm |
| HOUSE EQUIPMPMENT | |
| BATHROOM | |
| Bathroom furniture | |
| Sink + faucet | |
| Mirror | |
| Shower enclosure + faucet | |
| Toilet | |
| Towel radiator | |
| Recuperator | |
| KITCHEN AREA | |
| Kitchen furniture | |
| Sink + faucet | |
| GENERAL ELEMENTS | |
| Light fittings (recessed) | |
| Air-to-air heat pump | |
| Interior door | |
| ELECTRICAL INSTALLATION INSIDE THE BUILDING | |
| Internal distribution panel | Sockets, switches, wiring layout. |
| Distribution panel | For connecting external communications |
| WATER SUPPLY/WASTER INSIDE THE BUILDING | |
| Wastewater pipelines | Wastewater distribution system. |
| Sanitary appliances | Connectors for connection to external communications |
