Compact holiday home for your stay - DORIS. This 17.82 m2 bungalow has one bedroom, a comfortable bathroom and a kitchen-living area. It is ideal for 1-4 people, and you can set up a workplace or storage space if you need it.

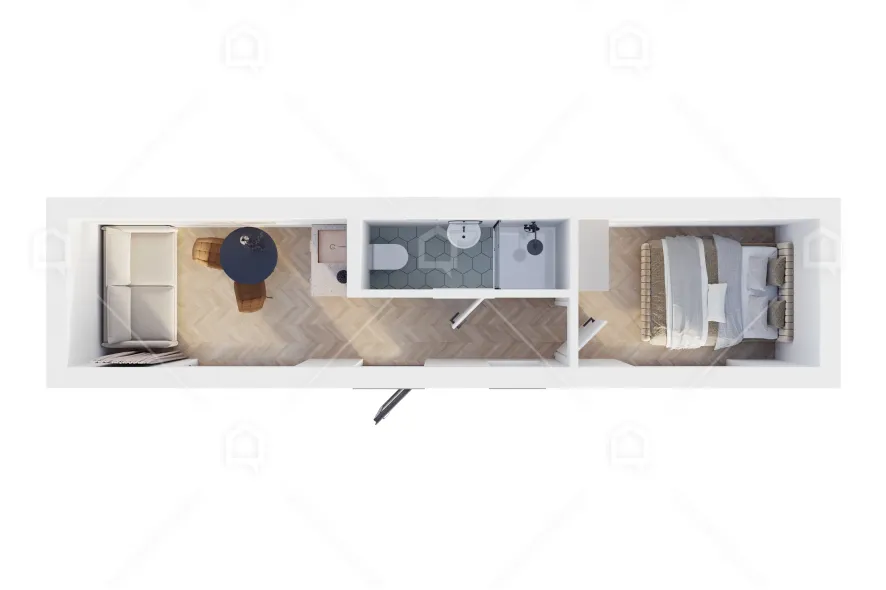

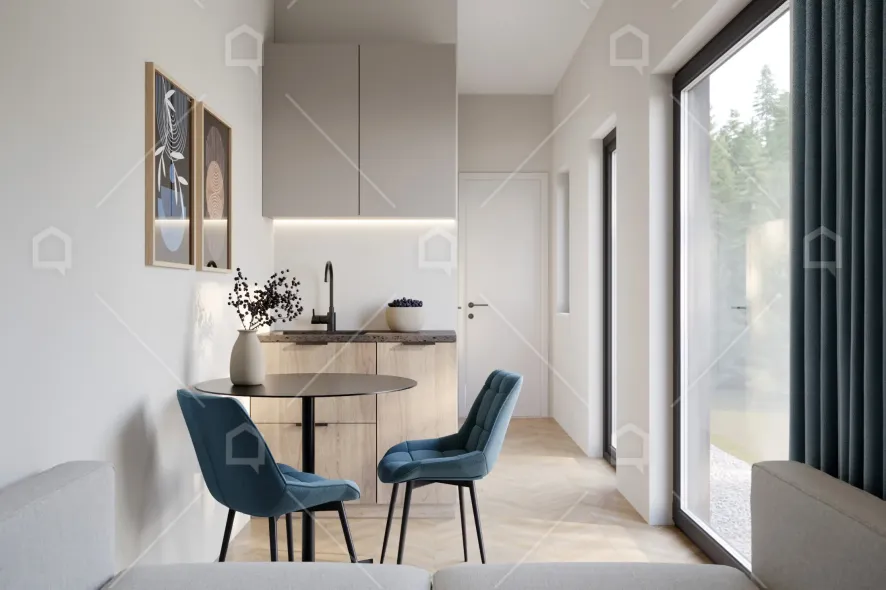

The Doris house is a small but practical holiday home for a small family. It is ideal for both private family holidays in the countryside and for those planning a caravan rental business. Compact, stylish holiday homes will look good in a lakeside or seaside resort. Inside DORIS you will find a private bedroom with a door, a bathroom and a shared kitchen-living area. A sofa bed can be built in to sleep your family or guests if required.

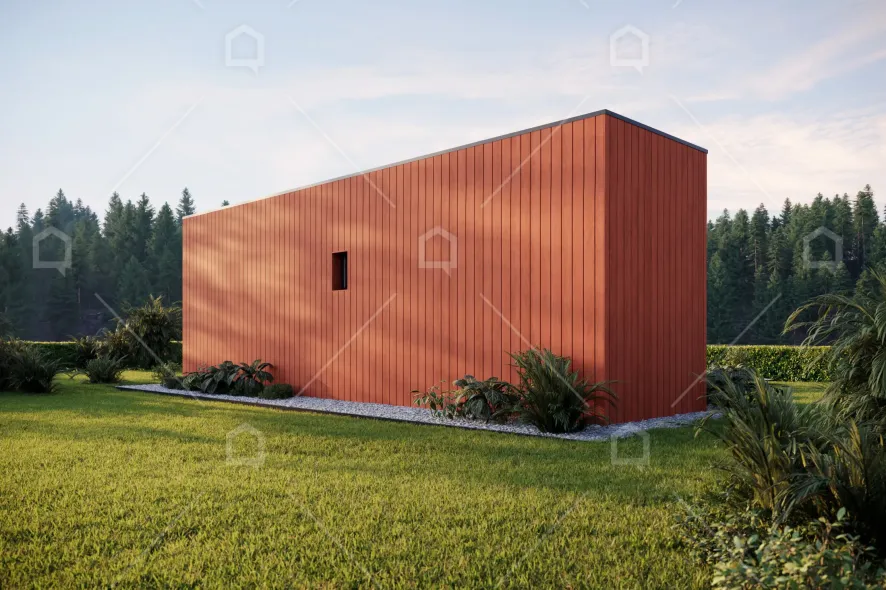

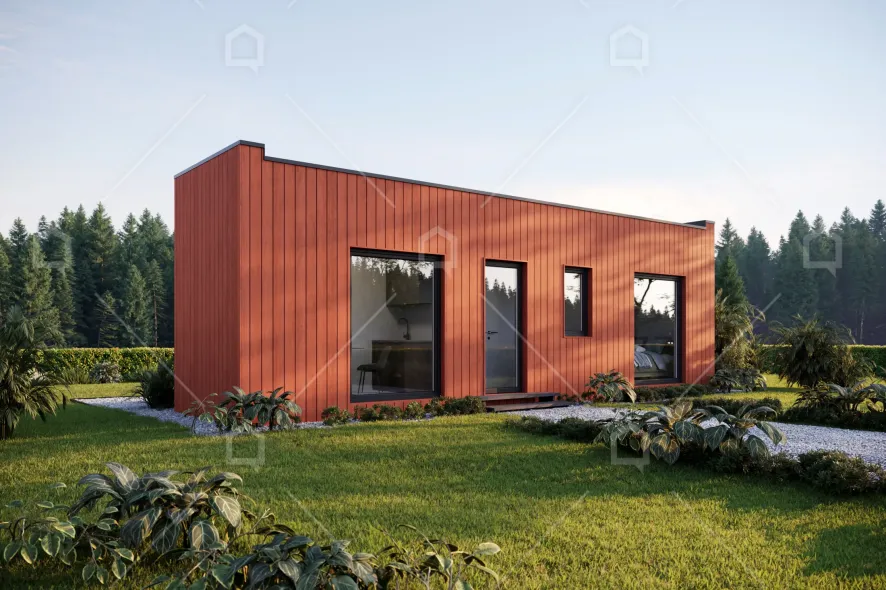

The exterior of DORIS is clad in clapboards and the flat roof is covered with a stylish bituminous coating. The model will blend in perfectly with the natural surroundings and will become synonymous with holidays and relaxation. Buy the standard DORIS model today!
A house is made up of several individual modules that are manufactured and assembled into a whole house in our factory. The modular house arrives on the customer's plot with interior and exterior finishes, a kitchen and a sanitary area.
- Robust, high quality and airtight construction (we use Siga sealing tapes with unlimited warranty).
- We use the highest quality C24 wood.
- Very good thermal insulation properties.
- Excellent sound insulation.
- Cost-effective product with low energy consumption.
- Easy to achieve the highest energy performance energy efficiency class.
- Short construction times.
- The house is assembled in the factory, the process is not weather dependent.
- A tidy construction site as the house is assembled in the factory and delivered to the site.
- Sustainable – when building a modular home, less material waste is produced than during a standard construction, meaning that it’s more friendly for the environment and your pocket (less material waste = less materials needed + quicker clean up).
- Quality – modular homes are factory-controlled, meaning that the whole construction is highly vetted before being installed. This pays off in high quality that you can be sure of.
- Safer construction – less disturbance and safer construction are what define modular homes – building a house like that can even help you stay on good terms with your neighbors.
| ROOF COVERING |
| Structural wooden panel |
285 mm |
| Roof specification |
Steel roofing Retro 25/Bituminous coating |
| Rocwool layer |
195 mm |
| MDP panels |
12 mm |
| Rainwater guttering system |
Metal |
| EXTERIOR WALLS |
| Facade finishes |
Oiled or painted cladding boards |
| Structural wooden panel |
286 mm (vertical cladding boards) |
| 258 mm (horiontal cladding boards) |
| Wall specification |
Timber frame |
| Rocwool layer |
145 mm |
| Ventilation layers |
Yes |
| INTERIOR |
| Partitions |
70 mm |
| Internal partition specification |
MDF board |
| Timber frame |
| Insulation |
| MDF board |
| Wall finishes (living area) |
Oiled cladding boards |
| MDP panels. TG-2 with click joint, connects without gaps. The thickness is 12 mm. |
| Floor covering (living area) |
Laminated floorboards. Resistance class: 33. Connection system: click. Thickness: 12mm |
| Bathroom |
Stoneware tiles. Resistance: PEI4. |
| WINDOWS, DOORS |
| Windows |
PVC double-glazed |
| Doors |
PVC double-glazed |
| FLOORS |
| Structural wooden panel |
241 mm |
| Floor specification |
Rodent control mesh |
| Steel frame |
| Timber beams |
| OSB boards |
| Laminate flooring |
| Rocwool layer |
195 mm |
| HOUSE EQUIPMPMENT |
| BATHROOM |
| Bathroom furniture |
| Sink + faucet |
| Mirror |
| Shower enclosure + faucet |
| Toilet |
| Towel radiator |
| Recuperator |
| KITCHEN AREA |
| Kitchen furniture |
| Sink + faucet |
| GENERAL ELEMENTS |
| Light fittings (recessed) |
| Air-to-air heat pump |
| Interior door |
| ELECTRICAL INSTALLATION INSIDE THE BUILDING |
| Internal distribution panel |
Sockets, switches, wiring layout. |
| Distribution panel |
For connecting external communications |
| WATER SUPPLY/WASTER INSIDE THE BUILDING |
| Wastewater pipelines |
Wastewater distribution system. |
| Sanitary appliances |
Connectors for connection to external communications |
