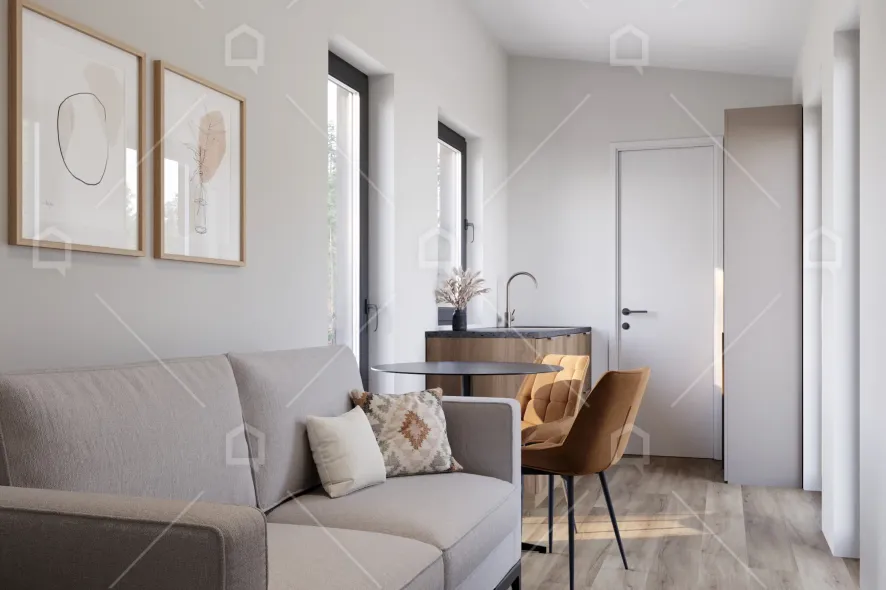

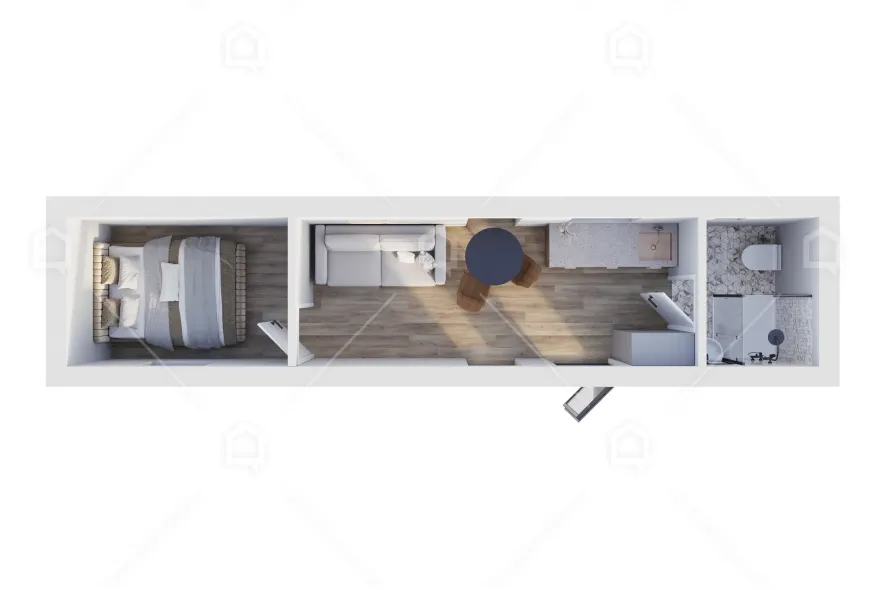

The DIA project was designed with one family's needs for a holiday in nature in mind. The small (24 m2) but practical layout of this house allows you to have all the amenities and enjoy a quality holiday. DIA impresses with its simplicity and elegance, could it be better?The usable area of the DIA is only 17.82 m2, but it can accommodate all the essentials - a private bedroom, a bathroom and a living room-kitchen area. If needed, you can put a sofa bed in the common area to accommodate more people. And if it's just the two of you, you can store your favourite board games in the living room, or set up a cinema projector with screen for movie nights. The furnishing of the cottage is up to you! The DIA is a practical and simple model that is easy to customise to your wishes. If you dream of a panoramic window in the bedroom, the DIA doesn't have one, but we suggest you take a look at the similar TITAN model, which has larger windows.

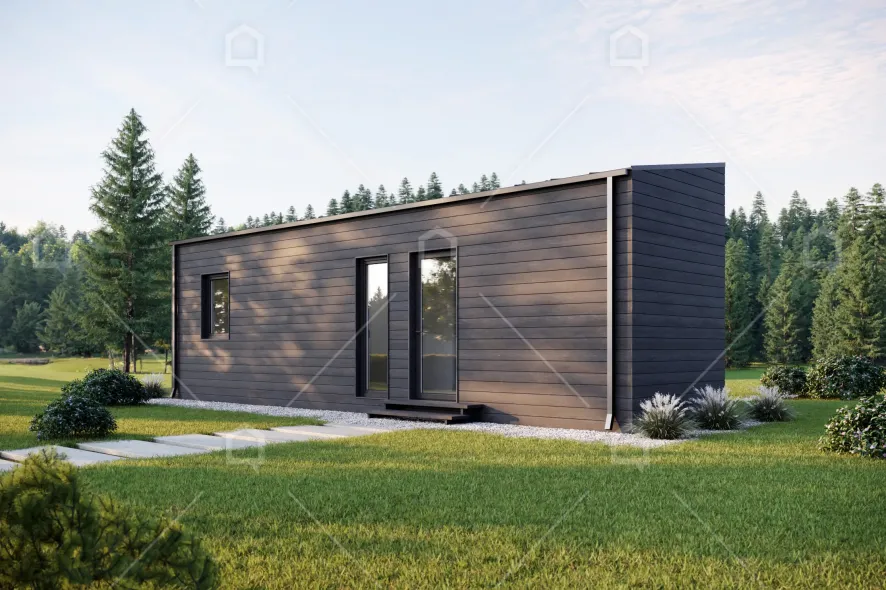

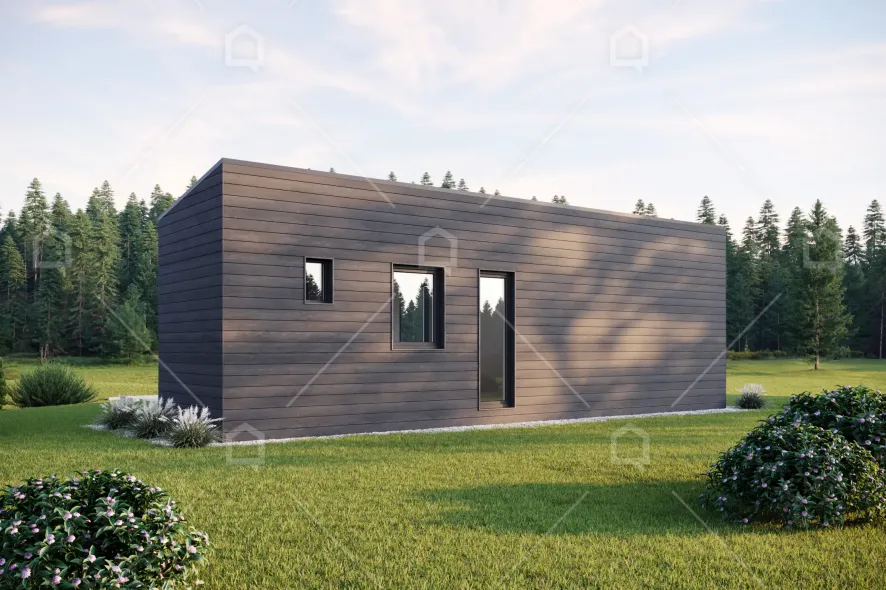

The exterior of the DIA is clad in siding and the single-pitched roof is covered with a reliable retro tin roof. These are durable and stylish solutions that will allow you to enjoy your garden house for a long time without having to worry about a dripping roof.
A house is made up of several individual modules that are manufactured and assembled into a whole house in our factory. The modular house arrives on the customer's plot with interior and exterior finishes, a kitchen and a sanitary area.
- Robust, high quality and airtight construction (we use Siga sealing tapes with unlimited warranty).
- We use the highest quality C24 wood.
- Very good thermal insulation properties.
- Excellent sound insulation.
- Cost-effective product with low energy consumption.
- Easy to achieve the highest energy performance energy efficiency class.
- Short construction times.
- The house is assembled in the factory, the process is not weather dependent.
- A tidy construction site as the house is assembled in the factory and delivered to the site.
- Sustainable – when building a modular home, less material waste is produced than during a standard construction, meaning that it’s more friendly for the environment and your pocket (less material waste = less materials needed + quicker clean up).
- Quality – modular homes are factory-controlled, meaning that the whole construction is highly vetted before being installed. This pays off in high quality that you can be sure of.
- Safer construction – less disturbance and safer construction are what define modular homes – building a house like that can even help you stay on good terms with your neighbors.
| ROOF COVERING | |
| Structural wooden panel | 285 mm |
| Roof specification | Steel roofing Retro 25/Bituminous coating |
| Rocwool layer | 195 mm |
| MDP panels | 12 mm |
| Rainwater guttering system | Metal |
| EXTERIOR WALLS | |
| Facade finishes | Oiled or painted cladding boards |
| Structural wooden panel | 286 mm (vertical cladding boards) |
| 258 mm (horiontal cladding boards) | |
| Wall specification | Timber frame |
| Rocwool layer | 145 mm |
| Ventilation layers | Yes |
| INTERIOR | |
| Partitions | 70 mm |
| Internal partition specification | MDF board |
| Timber frame | |
| Insulation | |
| MDF board | |
| Wall finishes (living area) | Oiled cladding boards |
| MDP panels. TG-2 with click joint, connects without gaps. The thickness is 12 mm. | |
| Floor covering (living area) | Laminated floorboards. Resistance class: 33. Connection system: click. Thickness: 12mm |
| Bathroom | Stoneware tiles. Resistance: PEI4. |
| WINDOWS, DOORS | |
| Windows | PVC double-glazed |
| Doors | PVC double-glazed |
| FLOORS | |
| Structural wooden panel | 241 mm |
| Floor specification | Rodent control mesh |
| Steel frame | |
| Timber beams | |
| OSB boards | |
| Laminate flooring | |
| Rocwool layer | 195 mm |
| HOUSE EQUIPMPMENT | |
| BATHROOM | |
| Bathroom furniture | |
| Sink + faucet | |
| Mirror | |
| Shower enclosure + faucet | |
| Toilet | |
| Towel radiator | |
| Recuperator | |
| KITCHEN AREA | |
| Kitchen furniture | |
| Sink + faucet | |
| GENERAL ELEMENTS | |
| Light fittings (recessed) | |
| Air-to-air heat pump | |
| Interior door | |
| ELECTRICAL INSTALLATION INSIDE THE BUILDING | |
| Internal distribution panel | Sockets, switches, wiring layout. |
| Distribution panel | For connecting external communications |
| WATER SUPPLY/WASTER INSIDE THE BUILDING | |
| Wastewater pipelines | Wastewater distribution system. |
| Sanitary appliances | Connectors for connection to external communications |
